AML921 is a digital downhole camera system for inspecting groundwater monitoring wells, capturing high-definition images and 3D underground data for remote well condition assessment.
Function：CT the underground well, using to investigate the status of groundwater environment moni toring wells.
Advantage：3 cameras are digitally managed, stereoscopic observation of downhole environment.
Introduction
Function: Performs CT scans of underground wells, generating slice images and assessment reports that can be digitally stored and transmitted.
Advantages: Features professional analysis software, differentiating it from conventional methods; 45 mm diameter probe suitable for 99% of well diameters, while competitors require 2-3 probes alternately, increasing time consumption.
Features:
1) Performs internal endoscopy of underground wells, generating images and assessment reports, automatically evaluating the rationality of point positions and protection status.
2) Uses high-definition cameras to observe the underground environment, obtaining three-dimensional data, allowing experts to remotely observe and judge.
3) Currently, both domestically and internationally, analog television is used, requiring experts to be on-site for underground environment assessment.

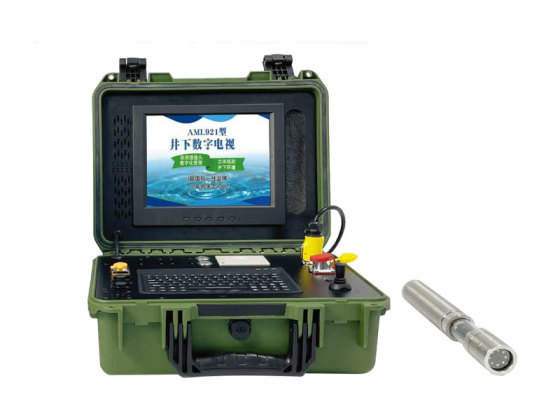

AML921 Downhole Camera for Groundwater Monitoring Well Inspection
The AML921 Downhole Camera is a digital borehole inspection system designed for inspecting the internal condition of groundwater monitoring wells.
Instead of relying only on conventional visual inspection methods, AML921 uses high-definition cameras to capture underground images and digital data, helping environmental engineers and well operators inspect the condition of a monitoring well from the surface.
The system can be used to identify changes in the internal well environment, observe well structures, and support the assessment of groundwater monitoring well conditions.
What Is a Downhole Camera Used For?
A downhole camera allows users to visually inspect the inside of a groundwater monitoring well without removing the well structure.
For groundwater monitoring projects, visual inspection can provide information that cannot be obtained from groundwater sampling data alone.
AML921 can be used for applications such as:
- Groundwater monitoring well inspection
- Borehole internal inspection
- Monitoring well condition assessment
- Underground well structure observation
- Environmental site investigation
- Inspection of well protection conditions
- Remote review of underground images
- Documentation of well conditions for technical reports
By recording digital images and inspection information, AML921 can help engineers create a visual record of the underground well environment.
How Does the AML921 Downhole Camera Work?
The AML921 system uses a compact camera probe that is lowered into the groundwater monitoring well.
The camera captures high-definition images of the internal well environment and transmits the visual information to the surface for observation and analysis.
The inspection data can be digitally stored and transmitted, allowing engineers or technical experts to review the underground condition without being physically present at the well.
This is particularly useful for environmental projects involving multiple monitoring wells or locations where experienced technical personnel cannot easily travel to every site.
Three-Camera Digital Observation System
AML921 uses a multi-camera configuration to provide a broader view of the underground well environment.
The three-camera system is digitally managed to support stereoscopic observation and improve the amount of visual information available during inspection.
Compared with relying on a single conventional camera view, a multi-camera system can provide additional information for understanding the spatial condition inside the well.
For groundwater monitoring projects, this can help engineers evaluate the internal environment more efficiently and make better-informed decisions about subsequent inspection, maintenance or sampling procedures.
High-Definition Imaging for Groundwater Monitoring Wells
The AML921 downhole camera captures high-definition images of the internal well environment.
The recorded images can be used to observe:
- Internal well conditions
- Changes in the well structure
- Protection and construction conditions
- Potential abnormalities inside the well
- Underground environmental conditions
- Areas that require further investigation
The digital image records can also be retained as part of a groundwater monitoring project file.
This gives environmental engineers a visual reference that can be compared with previous or future inspections.
Compact 45 mm Camera Probe
AML921 uses a compact camera probe with a diameter of approximately 45 mm.
The compact probe is designed to fit a wide range of groundwater monitoring well configurations.
According to AIMOLI’s product experience, the 45 mm probe can accommodate approximately 99% of commonly used monitoring well diameters.
For projects involving non-standard well dimensions, customers should provide the well diameter and internal configuration so that AIMOLI can confirm compatibility before ordering.
Digital Inspection Data and Remote Analysis
One of the important advantages of AML921 is that inspection information can be digitally stored and transmitted.
Traditional underground well inspection can require specialists to be physically present at the site to observe and evaluate the well condition.
With digital image acquisition, the inspection record can be shared with technical experts at another location.
This makes AML921 suitable for projects where:
- Multiple wells need to be inspected
- Technical experts are located remotely
- Inspection records need to be archived
- Project teams need to review the same underground images
- Well conditions need to be documented for future comparison
Digital inspection can therefore become part of a broader groundwater monitoring and environmental assessment workflow.
Groundwater Monitoring Well Inspection vs. Groundwater Sampling
A groundwater sampling system collects water from a monitoring well for laboratory or field analysis.
A downhole camera provides a different type of information: visual information about the internal condition of the well.
These two technologies can therefore complement each other.
For example, a groundwater monitoring project may use:
Downhole camera → inspect well condition
Groundwater sampling pump → collect groundwater samples
Water quality instruments → measure groundwater parameters
Using these technologies together can give engineers a more complete understanding of a monitoring well.
Why Inspect a Groundwater Monitoring Well?
A monitoring well may continue to produce groundwater samples while its internal condition changes over time.
Visual inspection can help identify conditions that may otherwise remain unnoticed.
A downhole inspection may be useful when:
- A monitoring well needs condition assessment
- Sampling performance changes unexpectedly
- A well requires maintenance evaluation
- Engineers need to document the internal well structure
- A newly constructed well needs inspection
- Historical well conditions need to be compared with current conditions
The appropriate inspection method depends on the well design, diameter, depth and project requirements.
AML921 Applications
AML921 can be used in a variety of groundwater and environmental monitoring applications.
Groundwater Monitoring Wells
Inspect the internal condition of monitoring wells and create digital visual records.
Environmental Site Investigation
Support environmental investigations by providing direct visual information from underground wells.
Well Condition Assessment
Help engineers evaluate the condition and protection status of existing monitoring wells.
Technical Documentation
Store inspection images and reports as part of a project’s technical documentation.
Remote Expert Review
Transmit digital inspection information to technical personnel who are not physically located at the monitoring site.
Key Features of AML921
- Digital downhole camera system
- Three-camera configuration
- High-definition underground imaging
- Stereoscopic observation capability
- Approximately 45 mm probe diameter
- Digital storage and transmission of inspection data
- Suitable for groundwater monitoring well inspection
- Supports remote technical review
- Designed for environmental and groundwater applications
AML921 Technical Information
| Item | AML921 |
|---|---|
| Product Type | Digital Downhole Camera System |
| Main Application | Groundwater Monitoring Well Inspection |
| Camera Configuration | Three-camera system |
| Imaging | High-definition digital imaging |
| Probe Diameter | Approximately 45 mm |
| Observation | Underground well environment |
| Data | Digital images and inspection information |
| Data Management | Storage and transmission |
| Typical Applications | Monitoring wells, borehole inspection, environmental investigation |
Actual performance and applicable well dimensions depend on the specific well structure and project conditions. Please contact AIMOLI with your well diameter, depth and inspection requirements for technical confirmation.
AML921 Compared with Conventional Well Inspection
Conventional inspection methods may require technical personnel to be physically present at the monitoring well and may provide limited opportunities for digital documentation.
AML921 provides a digital inspection workflow in which underground images can be captured, stored and transmitted.
This allows project teams to:
- Review underground conditions remotely
- Keep digital inspection records
- Share images with technical experts
- Compare inspection results between different wells
- Support technical reports with visual evidence
For projects involving multiple monitoring wells, digital inspection can make the information management process more efficient.
Why Choose AIMOLI for Groundwater Monitoring Equipment?
AIMOLI Environmental Instruments develops and manufactures equipment for groundwater monitoring and environmental investigation applications.
Our product range includes groundwater sampling systems, groundwater monitoring instruments and downhole inspection equipment.
As a China-based manufacturer, AIMOLI provides direct technical communication for international customers and can evaluate equipment requirements according to well diameter, well depth and project conditions.
If you are planning a groundwater monitoring well inspection project, provide the following information when contacting us:
- Well diameter
- Well depth
- Inspection depth
- Well structure
- Number of wells
- Required inspection information
- Existing monitoring equipment
Our technical team can recommend a suitable configuration based on the actual project conditions.
Frequently Asked Questions
What is a downhole camera?
A downhole camera is a camera system designed to inspect the internal environment of a borehole, monitoring well or other underground structure. The camera is lowered into the well and provides visual information from below the surface.
What is a groundwater monitoring well camera used for?
A groundwater monitoring well camera is used to visually inspect the internal condition of a monitoring well, document underground conditions and support technical assessment and maintenance decisions.
Can AML921 record underground images?
Yes. AML921 is designed to capture digital underground images that can be stored and transmitted for subsequent review and technical documentation.
What well diameter can AML921 inspect?
AML921 uses an approximately 45 mm diameter probe. AIMOLI’s product experience indicates that this size can accommodate approximately 99% of commonly used monitoring well diameters. For a specific project, the well diameter should be confirmed with AIMOLI before ordering.
Can groundwater engineers review AML921 inspection data remotely?
Yes. The system is designed to digitally store and transmit inspection information, allowing technical personnel in different locations to review the recorded underground images.
Is a downhole camera the same as a groundwater sampling pump?
No. A downhole camera is used to visually inspect the well, while a groundwater sampling pump is used to collect groundwater samples. The two types of equipment can be used together in a groundwater monitoring project.
Request AML921 Downhole Camera Information
If you need to inspect the internal condition of groundwater monitoring wells, AML921 provides a digital approach to underground visual inspection and documentation.
Send AIMOLI your well diameter, well depth, inspection depth and project requirements, and our technical team can help determine whether AML921 is suitable for your application.
